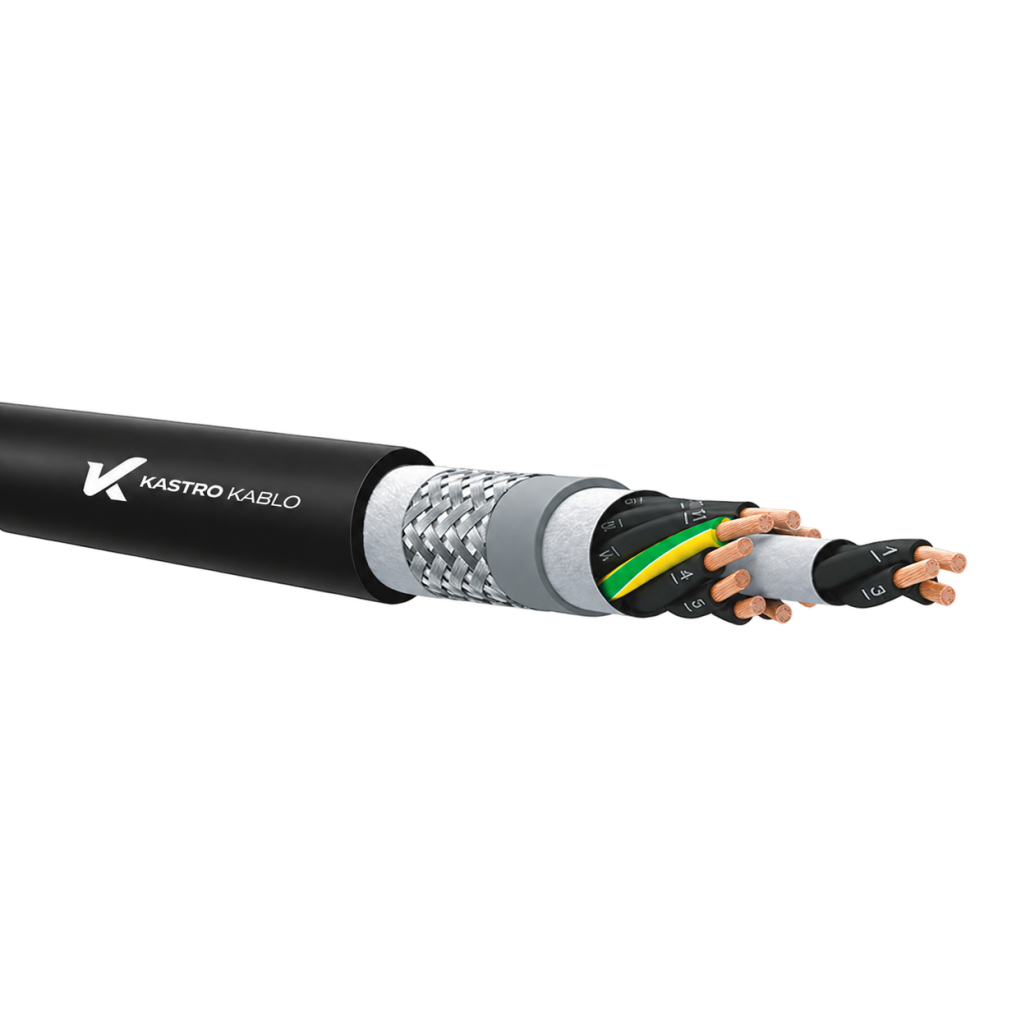

9YSL13YC11Y-JZ-OZ-Siyah

9YSL13YC11Y-JZ/OZ

TSE K 373 / TS EN 50525-2-51

These are PP insulated and PUR sheathed control cables manufactured in accordance with TSE K 373 / TS EN 50525-2-51 standards. They are designed for use in production lines, the machinery industry, robotic systems, and areas with free movement and low mechanical stress. Thanks to their flexible structure, they are suitable for applications in confined spaces. Suitable for fixed outdoor installations, but not designed for direct burial underground.

Categories: Control Cables, Flexible & Dynamic Applications, SPECIAL CABLES

Description

CABLE STRUCTURE

Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 )
Insulation: Special Compound, PP
Core Identification: -JZ : Green-Yellow earth core ,Black insulation (with white number)
Stranding: Cores stranded in layers
Wrapping: Non Woven Bant
Inner Sheath: Special Compound, TPE-E
Screen: Tinned Copper Braid
Wrapping: Non Woven Bant
Outer Sheath: PUR ( TMPU) ( TS EN 50363-10-2 )
Outer Sheath Colour: RAL 9005 Black (Other colours on request)
