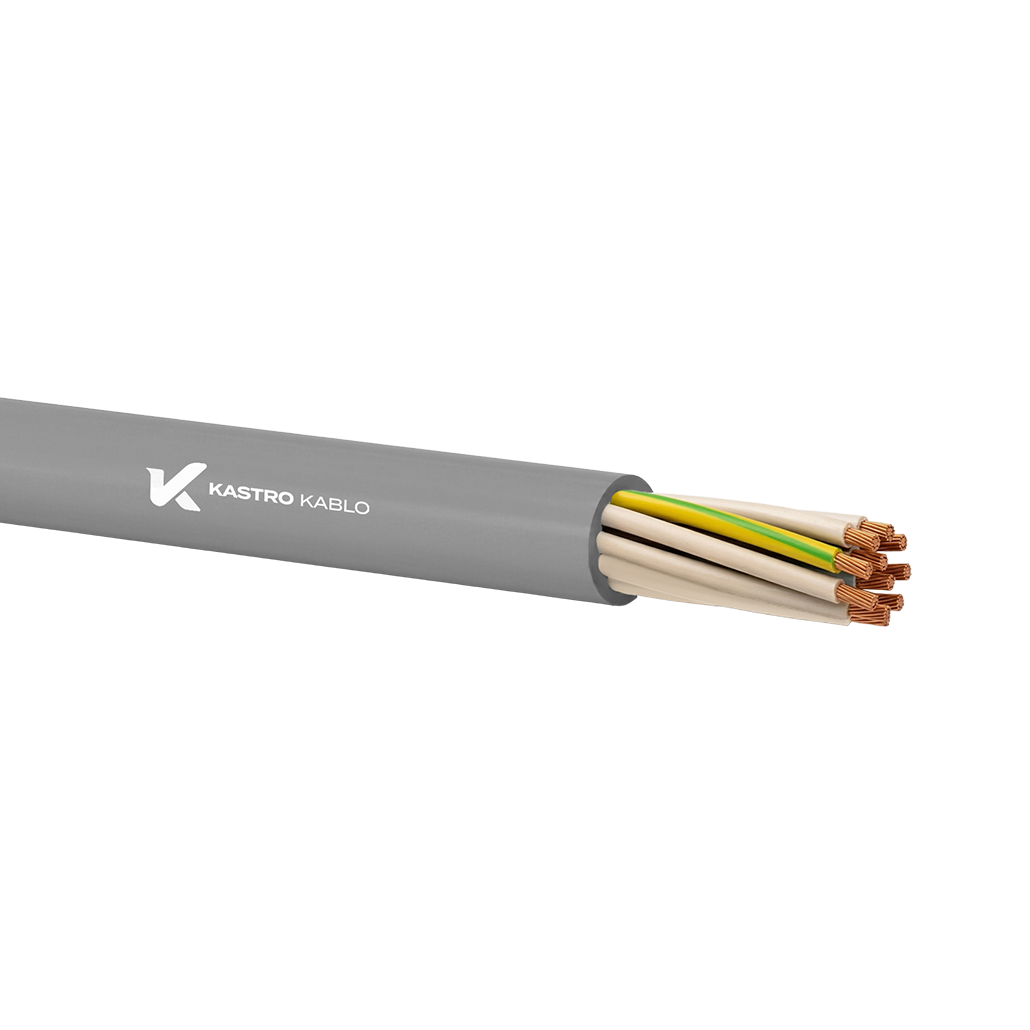

2YSL11Y-JZ

2YSL11Y-JZ

TS EN 50525-2-51

With its high resistance to abrasion and chemicals, it provides a long-lasting and reliable solution for dynamic applications. It has been specially designed for energy chains, cranes, elevators, conveyor systems, and robotic applications. It can be safely used in dry, humid, oily, petroleum-derived, and acidic environments.

Categories: Control Cables, SPECIAL CABLES

Description

CABLE STRUCTURE

Conductor: Stranded electrolytic annealed bare copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 )
Insulation: PE
Core Identification: JB: Coloured cores acc. to HD 308 S2 / with green-yellow core (G)
DIN VDE 0293; TS EN 50334 or White insulated cores with black number impirinted
Stranding: Cores stranded in layers
Separator: Synthetic white tape
Outer Sheath: PUR ( TMPU) ( TS EN 50363-10-2 )
Outer Sheath Colour: RAL 7001 Gray (Other colours on request)

Datasheet
