DIN VDE 0250,IEC 60502-1

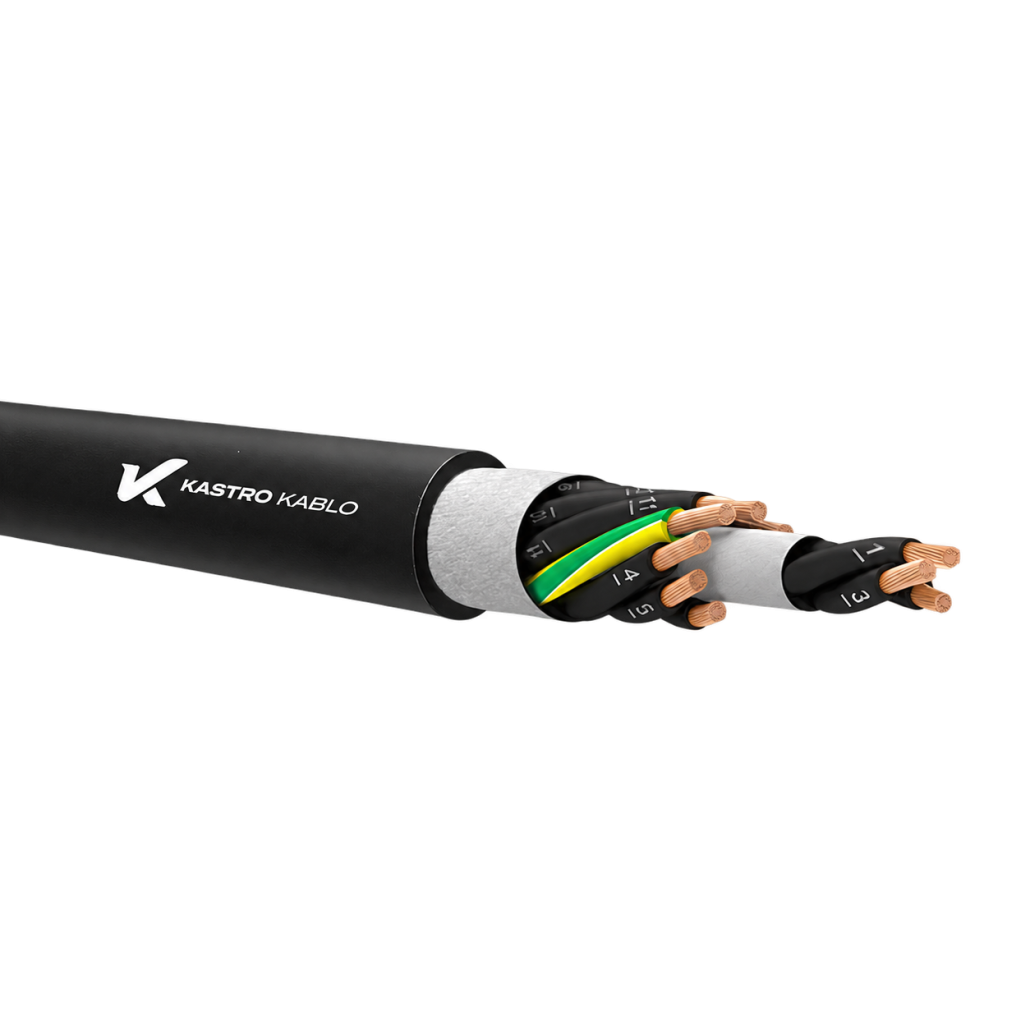

These are flexible PP insulated and PUR sheathed control cables manufactured in accordance with TSE K 373 / TS EN 50525-2-51 standards. They are designed for use in production lines, the machinery industry, robotic systems, and areas with free movement and low mechanical stress. Thanks to their flexible structure, they are suitable for applications in confined spaces. Suitable for fixed outdoor installations, but not designed for direct burial underground.
Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 )
Insulation: Special Compound, PP
Core Identification: -JZ : Green-Yellow earth core ,Black insulation (with white number)
Stranding: Cores stranded in layers
Wrapping: Non Woven Bant
Outer Sheath: PUR ( TMPU) ( TS EN 50363-10-2 )
Outer Sheath Colour: RAL 9005 Black (Other colours on request)
[contact-form-7 id=”b8a89d0″ title=”Price Quote”]
9YSL13YC11Y-JZ/OZ
