TS EN 50525-2-51

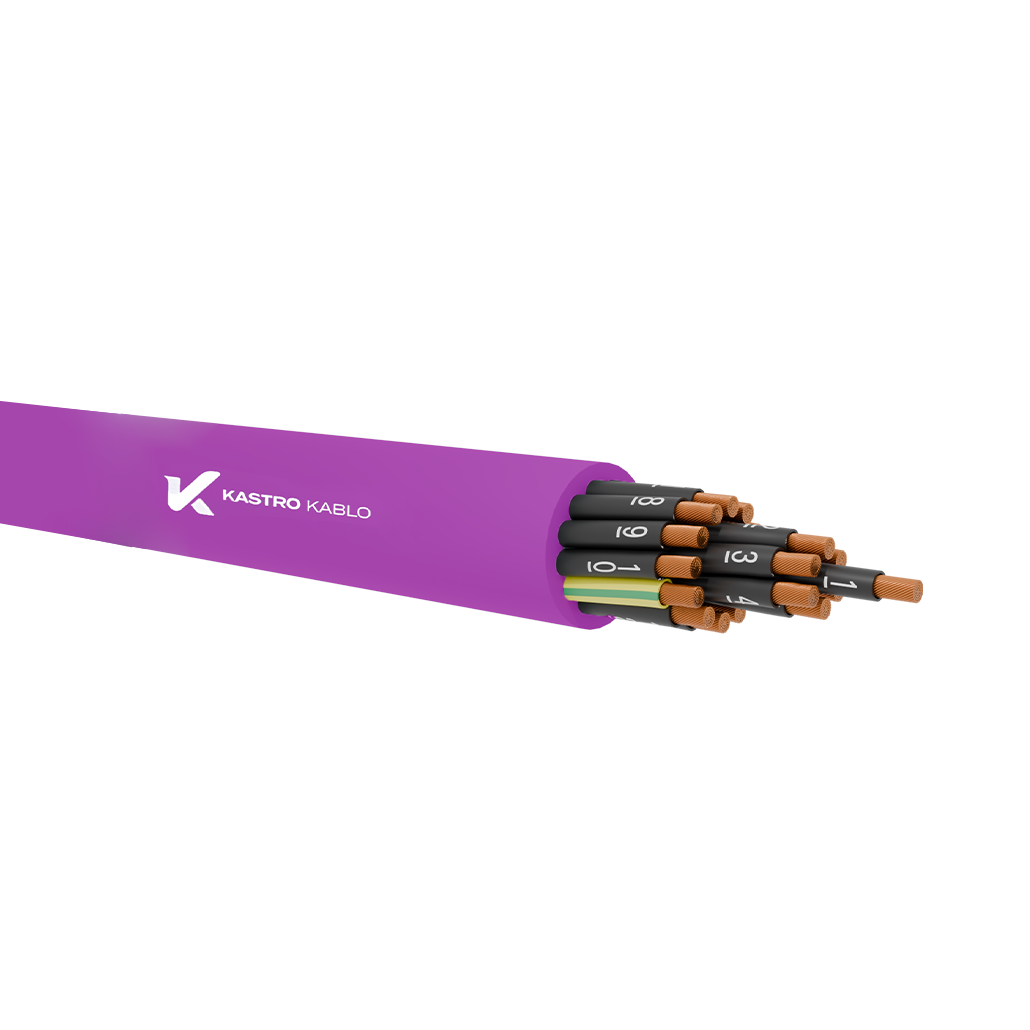

These control cables are manufactured in accordance with TS EN 50525-2-21 standards and feature EPR insulation with a PUR outer sheath. They are designed for use in production lines, the machinery industry, robotic systems, and applications where free movement and low mechanical stress are required. Thanks to their flexible structure, they are suitable for installation in confined spaces. They can be used in fixed outdoor installations; however, they are not intended for direct underground burial.
Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 )
Insulation: Cross-linked elastomer compound (EI6 – EN 50363-1)
Core Identification: -JZ : Green-Yellow earth core ,Black insulation (with white number)
Stranding: Cores stranded in layers
Outer Sheath: PUR ( TMPU) ( TS EN 50363-10-2 )
Outer Sheath Colour: RAL 4001 Violet (Other colours on request)
[contact-form-7 id=”b8a89d0″ title=”Price Quote”]
9YSLCYK
