DIN VDE 0250,IEC 60502-1

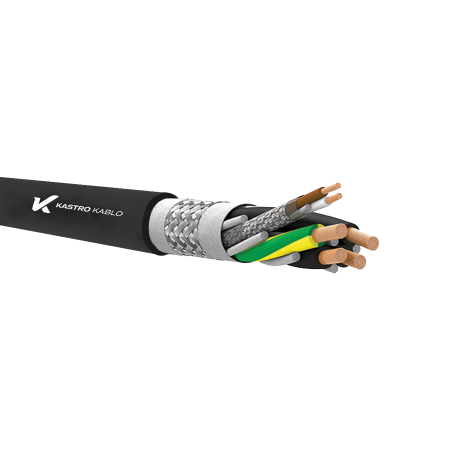

These are flexible crane cables with TPE insulation and PUR sheath, manufactured in accordance with DIN VDE 0250 and IEC 60502-1 standards. These cables are resistant to tearing, abrasion, and impacts. In addition, they withstand all weather conditions, low temperatures, oils, numerous chemicals, solutions, acids, hydrolysis, and microorganisms. They provide long-lasting performance in both indoor and outdoor applications.
Crane power and control cables with a PUR sheath and high flexibility are preferred in heavy-duty applications such as drum winding-unwinding systems, cranes, drive and rail-mounted traction motors, lifting and conveying equipment, and conveyor systems. They can be safely used in applications requiring free movement under mechanical stress, torsion, and tensile loads, as well as in oily, dry, humid, or wet environments.
Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 )
Insulation: Special Compound, TPE-E
Core Identification: HD 308
Stranding: Cores stranded in layers
Wrapping: Ptfe Bant
Reinforcement: Aramid Braiding
Outer Sheath: PUR ( TMPU) ( TS EN 50363-10-2 )
Outer Sheath Colour: RAL 9005 Black (Other colours on request)
[contact-form-7 id=”b8a89d0″ title=”Price Quote”]
PP Insulated Screened Pur Sheathed Special Cable
