TS EN 50525-2-51

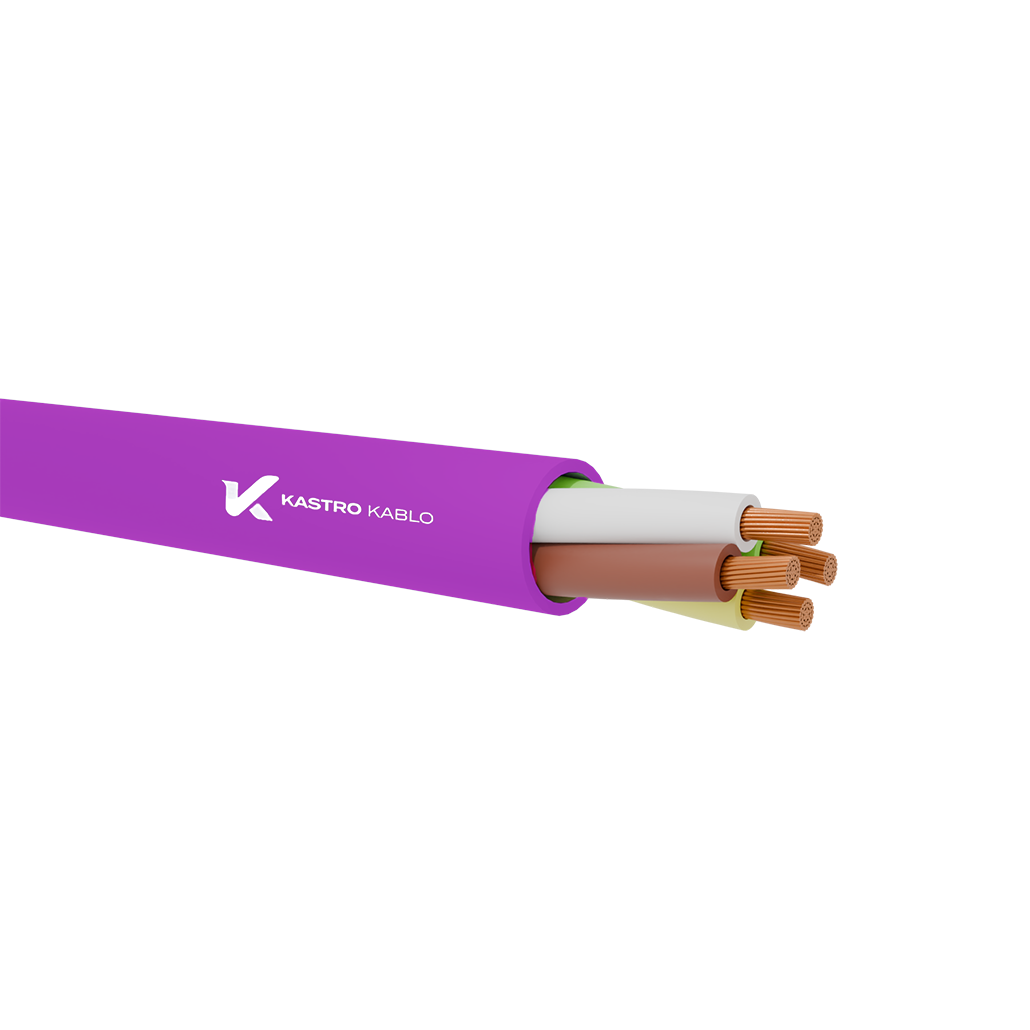

These highly flexible drag chain cables are designed for use in electrical equipment and connector systems involving sensors, actuators, and automation technologies. They are suitable for wet, dry, and damp conditions, both indoors and outdoors, even in demanding environments. The cable offers resistance to oil, ozone, and UV exposure.
Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 )
Insulation: PP
Core Identification: Colored cores according to HD 308
Stranding: Cores stranded in layers
Screen: Tinned copper screen
Outer Sheath: PUR ( TMPU) ( TS EN 50363-10-2 )
Outer Sheath Colour: RAL 4001 Violet (Other colours on request)
[contact-form-7 id=”b8a89d0″ title=”Price Quote”]
2YSL11Y-JZ
