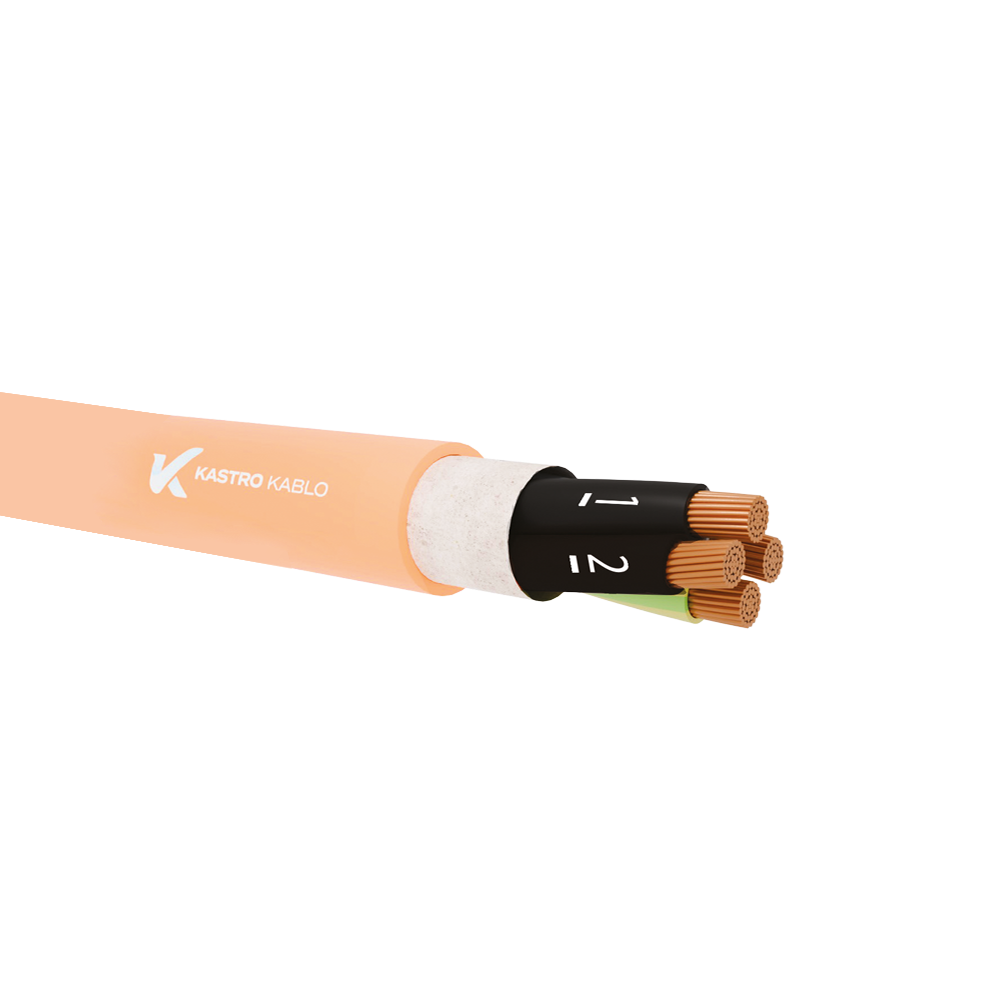

11YSL11Y-JB / -JZ

CONTROL CABLES

11YSL11Y-JB /-JZ

TSE K 373 / TS EN 50525-2-51

These are Pur insulated and sheathed control cables manufactured in accordance with TSE K 373 / TS EN 50525-2-51 standards. They are designed for use in production lines, the machinery industry, robotic systems, and areas with free movement and low mechanical stress. Thanks to their flexible structure, they are suitable for applications in confined spaces. Suitable for fixed outdoor installations, but not designed for direct burial underground.

Category: CONTROL CABLES

Description

CONSTRUCTION

Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 )
Insulation: PUR ( TMPU)
Core Identification: -JB : HD 308 S2 (up to 5 cores)
-JZ : Green-Yellow earth core ,Black insulation (with white number)(over 5 cores)
Stranding: Cores stranded in layers
Wrapping: Non-Woven Tape
Outer Sheath: PUR ( TMPU) ( TS EN 50363-10-2 )
Outer Sheath Colour: RAL 2003 Orange (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– OZ : Black insulation (with white number)

Datasheet
