2YSLCYK-JB
CONTROL CABLES

2YSLCYK-JB

VDE 0250 / TS IEC 60502-1

It is designed to be used in frequency-controlled engine feeds, power stations, automobile industry and heavy industry where electromagnetic interference and mixture occur. It is suitable for use in wet, humid and dry indoor environments. Thanks to their flexible structure, they are suitable for narrow space applications. It is not suitable for use outdoors or buried directly under the ground.

Category:

Description

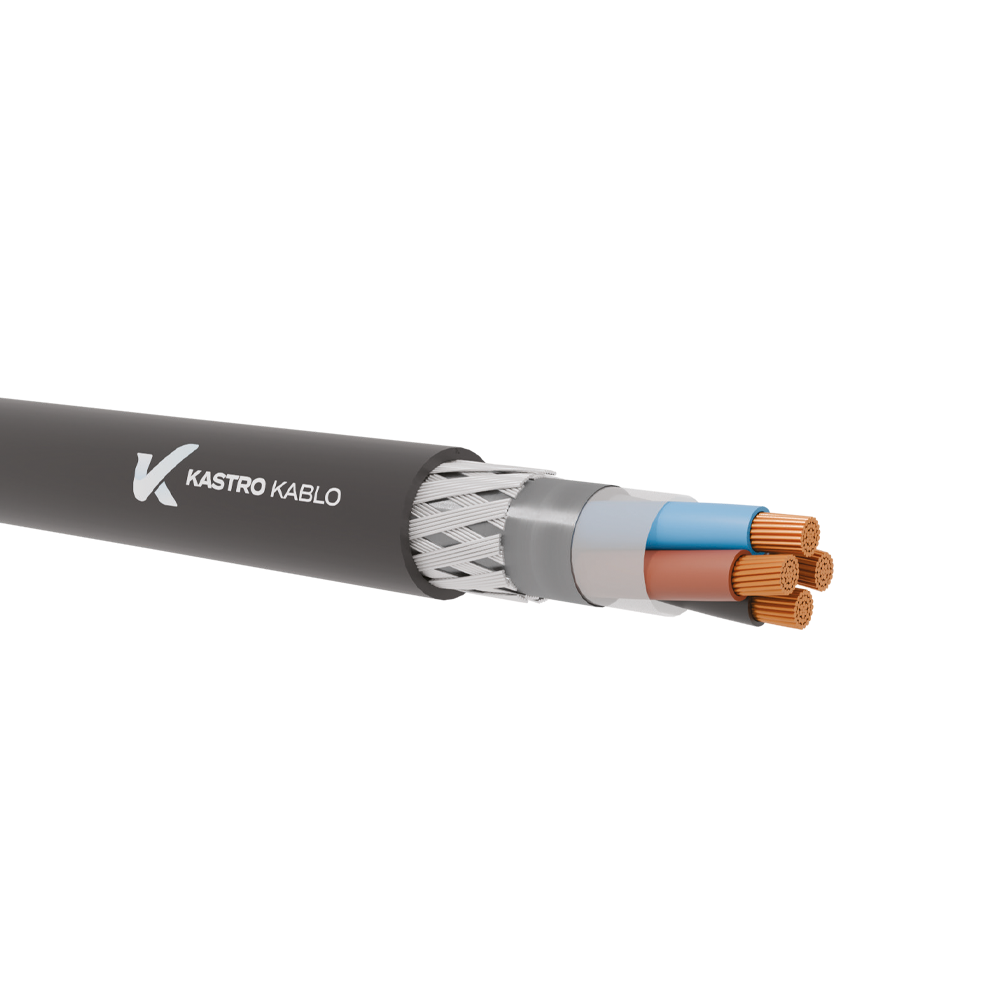

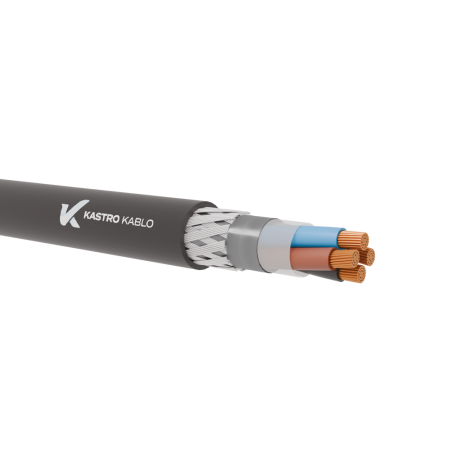

CONSTRUCTION

Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 )
Insulation: PE
Core Identification: HD 308 S2
Stranding: Cores stranded in layers
Wrapping: Polyester Tape
1. Screen: Aluminium/Polyester Tape
2. Screen: Tinned Copper Braid
Outer Sheath: PVC (TM 5- EN 50363-4-1)
Outer Sheath Colour: RAL 7001 Grey (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

–  XLPE Insulation
–  Transparent Outer Sheath
