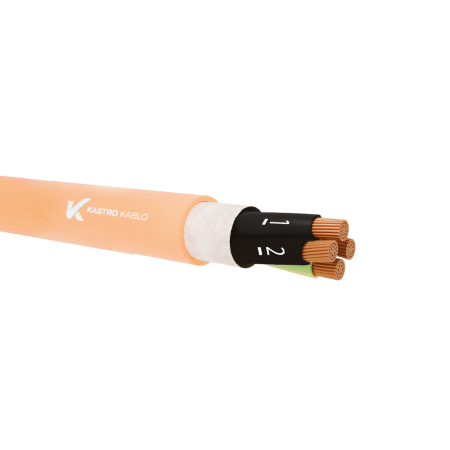

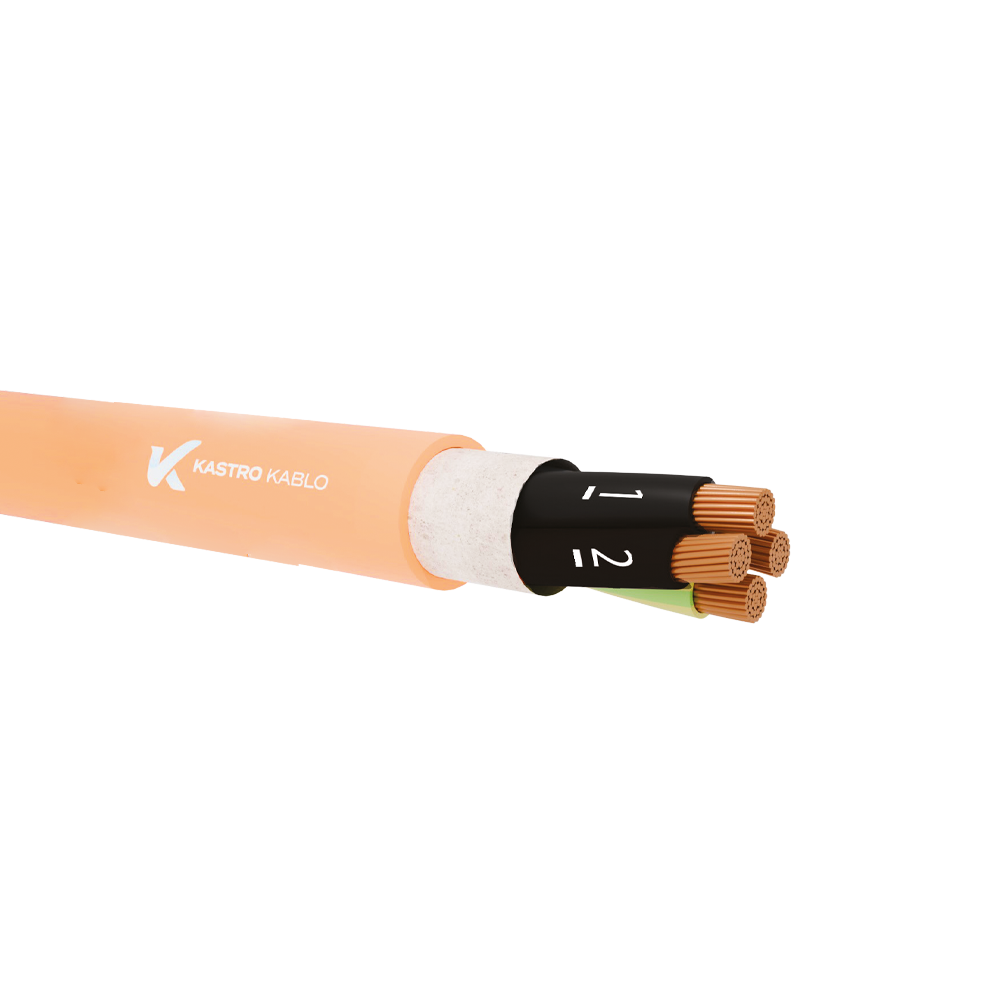

YSL11Y-JZ-OZ

CONTROL CABLES

YSL11Y-JZ / OZ

TSE K 373 / TS EN 50525-2-51

These are flexible PVC insulated and PUR sheathed control cables manufactured in accordance with TSE K 373 / TS EN 50525-2-51 standards. They are designed for use in production lines, the machinery industry, robotic systems, and areas with free movement and low mechanical stress. Thanks to their flexible structure, they are suitable for applications in confined spaces. Suitable for fixed outdoor installations, but not designed for direct burial underground.

Category: CONTROL CABLES

Description

CONSTRUCTION

Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 )
Insulation: PVC (TSE K 373)
Core Identification: -JZ : Green-Yellow earth core ,Black insulation (with white number)
Stranding: Cores stranded in layers
Wrapping: Non-Woven Bant
Outer Sheath: Matt PUR ( TMPU) ( TS EN 50363-10-2 )
Outer Sheath Colour: RAL 2003 Orange , RAL 7001 Grey (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– JB : HD 308 S2
– OZ : Black insulation (with white number)
