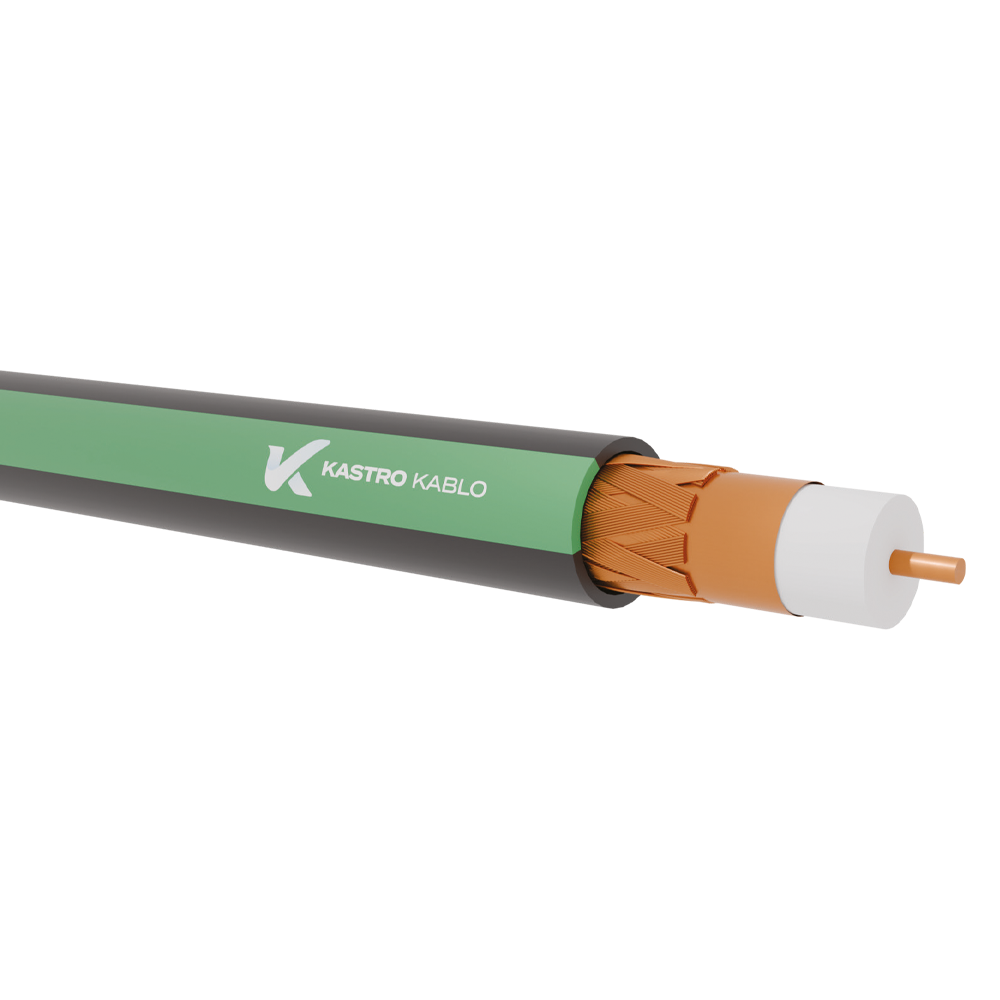

RG 6-U-6 Cu-Cu PVC

RG 6/U-6 Cu/Cu PVC

TS EN 50117-9-2

It is a coaxial cable produced according to TS EN 50117-9-2 standards. It is designed to be used as distribution cable in places requiring low attenuation, such as indoor cable TV systems, central satellite systems, CCTV security systems. It is not suitable for use outdoors or buried directly under the ground.

Category:

Description

CONSTRUCTION

Conductor: 1,02 mm Electrolytic copper
Insulation: Foam PE ( EN 50290-2-37)
1.Screen: Copper/Polyester Tape (Cu/Pes)
2.Screen: Annealed Copper Braid
Outer Sheath: PVC ( EN 50290-2-22 )
Outer Sheath Colour: RAL 9005 Black / RAL 6018 Green (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– HFFR Outer Sheath
– PE Outer Sheath
– Cu/CuSn , Al Screen
– EN 50575 CPR compliant
