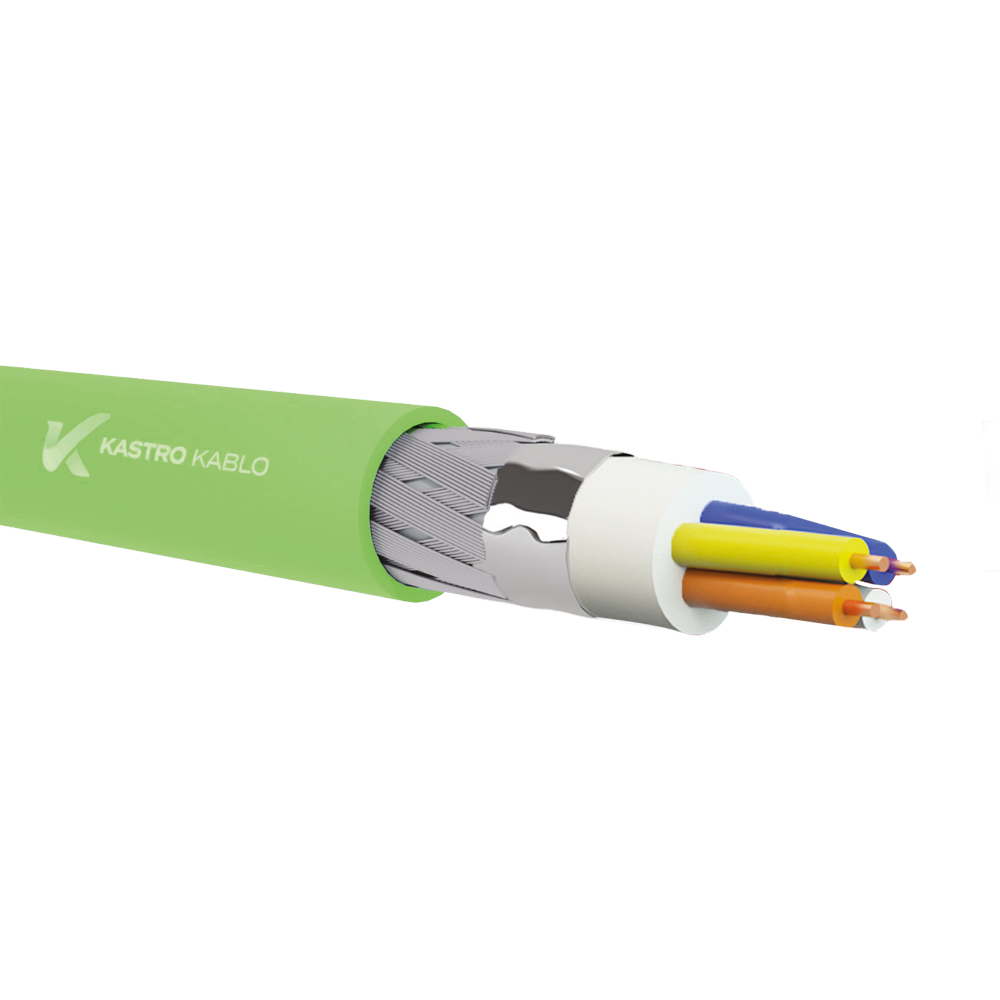

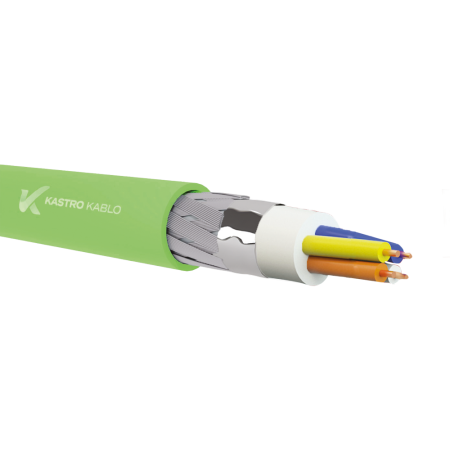

PROFINET Type A PVC

These cables are designed for data transfer in accordance with the Profinet protocol. Suitable for fixed installations.

Category: DATA CABLES

Description

CONSTRUCTION

Conductor: Electrolytic solid copper conductor ( AWG 22 )
Insulation: PE (EN 50290-2-23)
Core Identification: White – Yellow – Blue – Orange
Stranding: 4 cores twisted together
Inner Sheath: PVC
Screen: Aluminium/Polyester Tape+Tinned Copper Braid
Outer Sheath: PVC (EN 50290-2-22)
Outer Sheath Colour: RAL 6018 Green
