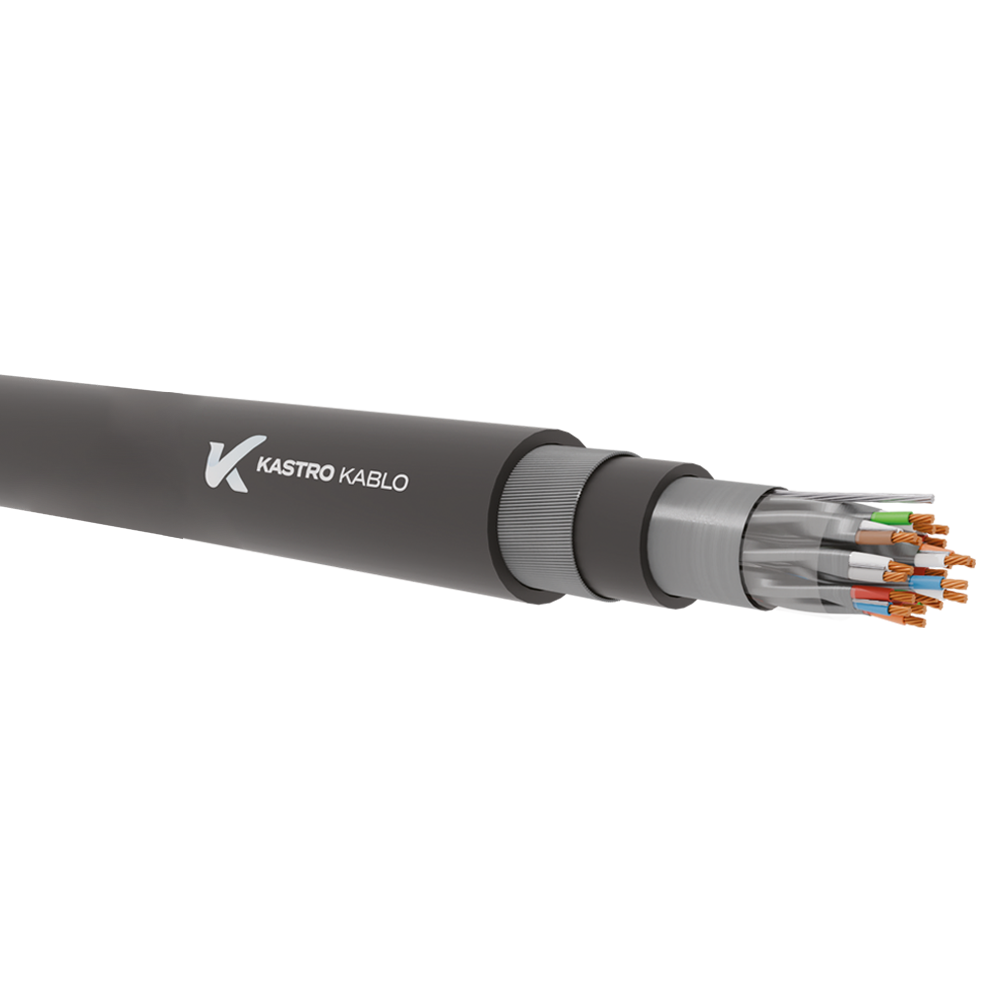

PAS BS 5308 Part2 Type2 PVC-ICAM-PVC-SWA-PVC
INSTRUMENTATION CABLES

PAS BS 5308 Part2 Type2 PVC/ICAM/PVC/SWA/PVC

PAS 5308-2

These are instrumentation cables produced according to PAS 5308-1 standard. It is designed
for use in analog and digital control circuits, chemical industry, industrial signaling and process control circuits, petrochemical industrial display panels, electrical measuring devices and gas stations.

Category:

Description

Conductor: Stranded Electrolytic copper (EN/IEC 60228 – Class 2,5)
Insulation: PVC (EN 50290-2-21)
Core Identification: PAS 5308-2 Table C1
Individual Wrapping: Polyester Tape
Individual Screen: Aluminium/Polyester Tape + Tinned Copper Drain Wire
Stranding: Pairs stranded in layers (Two-pair cables laid in quad formation)
Overall Wrapping: Polyester Tape
Overall Screen: Aluminium/Polyester Tape + Tinned Copper Drain Wire
Inner Sheath: PVC (EN 50290-2-22)
Armour: Round Galvanised Steel Wires
Outer Sheath: PVC (EN 50290-2-22)
Outer Sheath Colour: RAL 9005 Black , RAL 5015 Blue (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– 0,6/1 kV version
– Hydrocarbon Resistance PVC Outer Sheath
– LSZH Outer Sheath
– UV Resistance Outer Sheath
– Anti Termit / Anti Rodent
– EN 50575 CPR compliant
