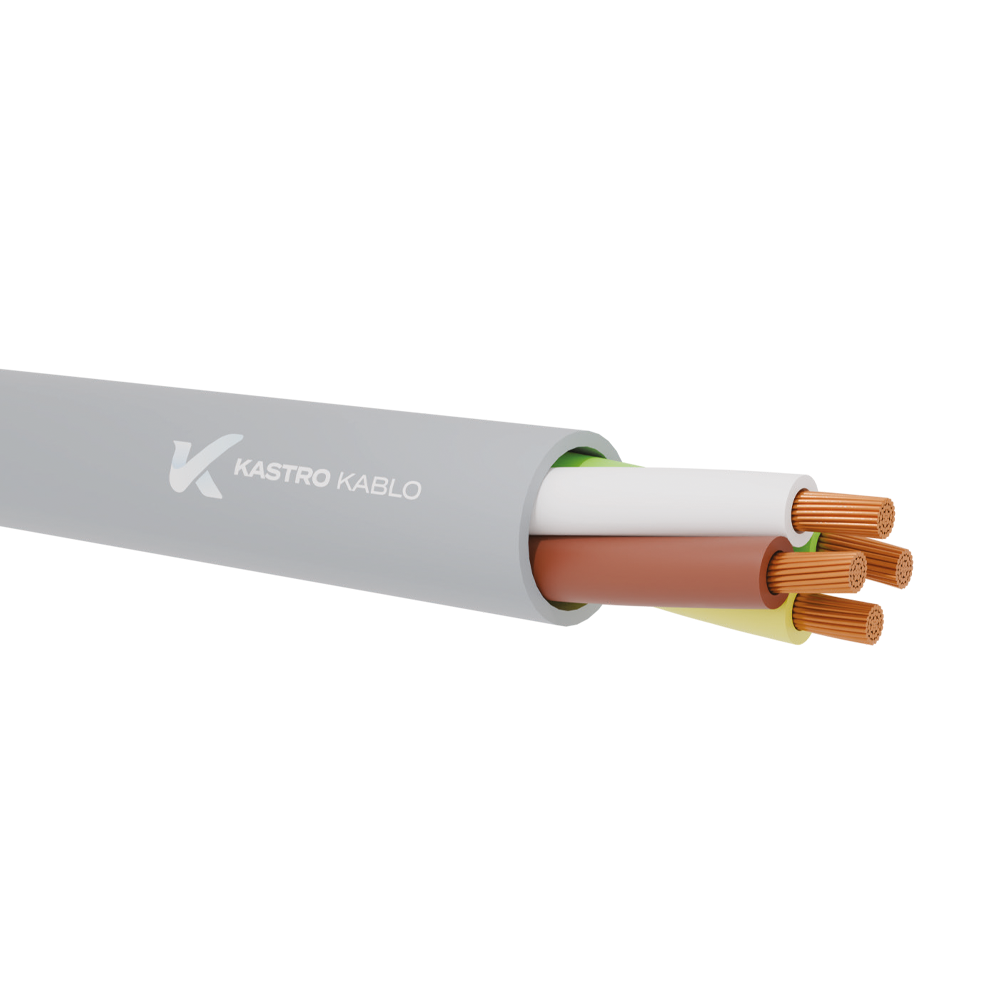

LIHH

LIHH

TS 13755 , DIN VDE 0812

These are signal and control cables produced according to TS 13755 and VDE 0812 standards. It is designed to be used in industrial electronics, office machines, computer systems, indoor communication systems, audio and security systems. HFFR material is used in the product, it should be preferred in closed areas where people are densely populated, due to its features such as not releasing toxic gas when burned, not transmitting flame and low smoke density. It is not suitable for use outdoors or buried directly under the ground.

Category:

Description

CONSTRUCTION

Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 , 0,22 -0,34mm² :Class2)
Insulation: PVC (EN 50290-2-21 , DIN VDE 0207-4)
Core Identification: DIN 47100
Stranding: Cores stranded in layers
Outer Sheath: PVC (EN 50290-2-22 , DIN VDE 0207-5)
Outer Sheath Colour: RAL 7001 Grey (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– PVC Insulation , PVC Outer Sheath
– Multipair
– EN 50575 CPR compliant
– OZ : Black insulation (with white number)
– JZ : Green-Yellow earth core ,Black insulation (with white number)
