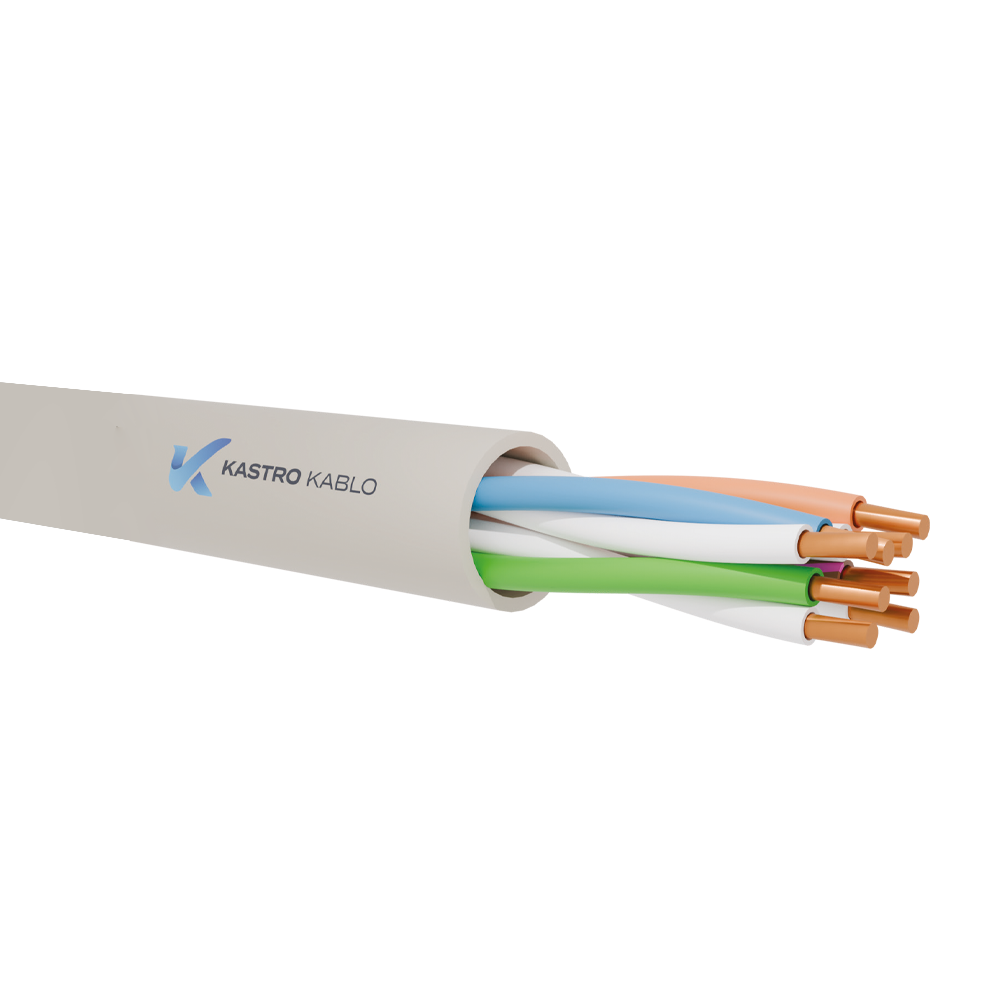

HBH / HBH-K

COMMUNICATION AND INFORMATION TRANSMISSION CABLES

HBH / HBH-K

TSE K 116

These are communication and information transmission cables produced according to TSE K 116 standard. It is designed to be used in fixed indoor installations, switchboard and subscriber distribution cable. Since HFFR material is used in the product, it should be preferred in closed areas where people are densely populated, due to its features such as not releasing toxic gas when burned, not transmitting flame and low smoke density. It is not suitable for use outdoors or buried directly under the ground.

Category: COMMUNICATION AND INFORMATION TRANSMISSION CABLES

Description

CONSTRUCTION

Conductor: HBH: Mono annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Sınıf 1)
HBH-K: Mono tinned copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Sınıf 1)
Insulation: HFFR (EN 50290-2-26)
Core Identification: TSE K 116
Stranding: Pairs up to 10 pairs twisted in layers
Groups over 10 pairs twisted into multiples
20 pairs and above 5-ply twisted pairs are separated by polyester tape
Wrapping: Polyester Tape
Outer Sheath: HFFR (EN 50290-2-27)
Outer Sheath Colour: RAL 7032 Grey (Other colours on request)

Datasheet
