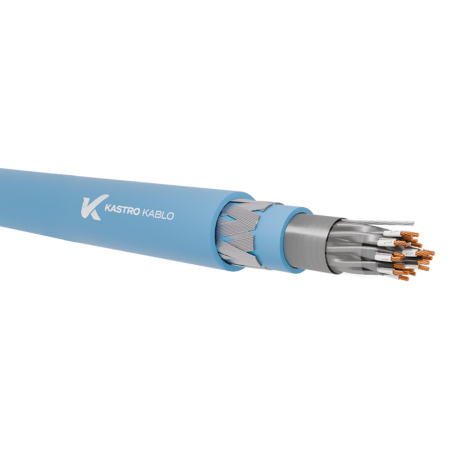

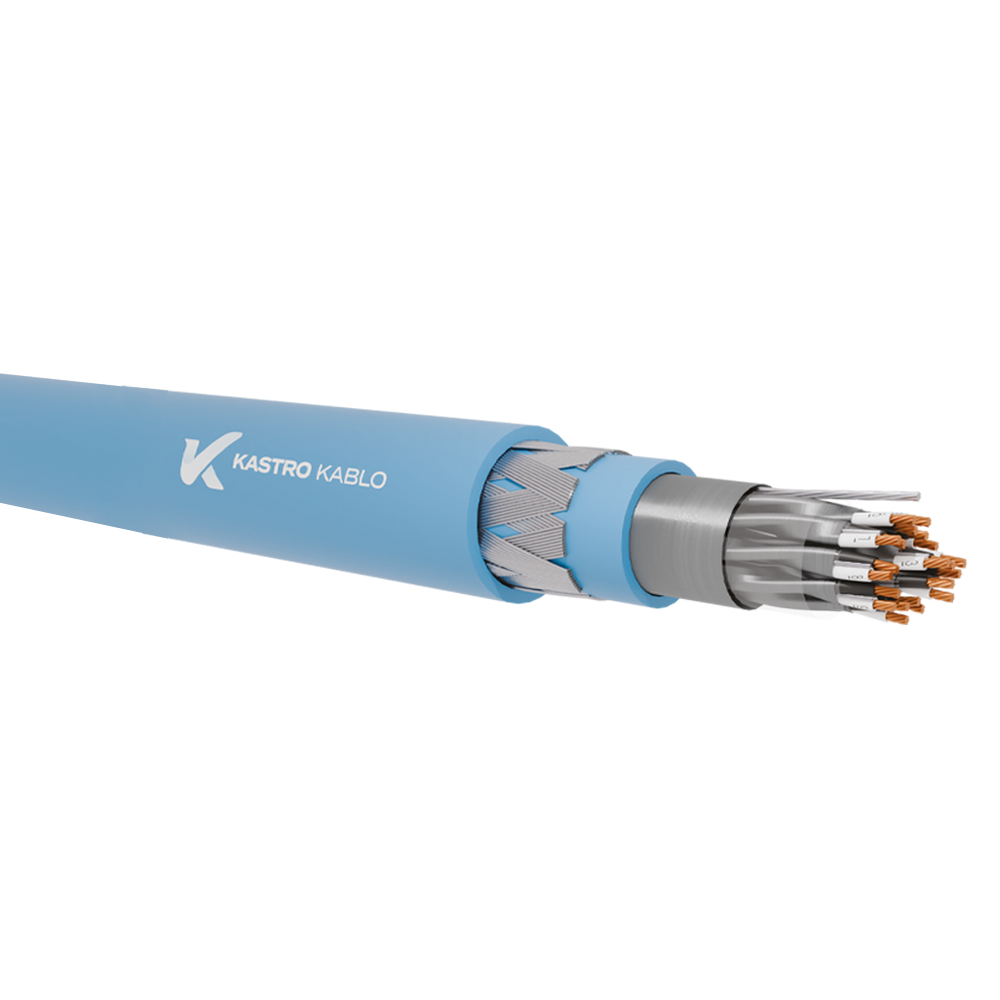

Description
Conductor: Electrolytic copper (EN/IEC 60228)
Insulation: PVC (EN 50290-2-21)
Core Identification: White – Black (with number)
Individual Wrapping: Polyester Tape
Individual Screen: Aluminium/Polyester Tape + Tinned Copper Drain Wire
Stranding: Shielded pairs stranded in layers
Overall Wrapping: Polyester Tape
Overall Screen: Aluminium/Polyester Tape + Tinned Copper Drain Wire
Inner Sheath: PVC (EN 50290-2-22)
Armour: Galvanised Steel Wires Braiding
Outer Sheath: PVC (EN 50290-2-22) , (*Yv, Rainforced Outer Sheath (VDE 0816))
Outer Sheath Colour: RAL 9005 Black , RAL 5015 Blue (Other colours on request)
AVAILABLE OPTIONS ON REQUEST
– 500 V version
– 0,6/1 kV version
– PE , XLPE Insulation
– Multitriad, Multiquad
– SWA version
– STA version
– Hydrocarbon Resistance PVC Outer Sheath
– LSZH Outer Sheath
– UV Resistance Outer Sheath
– Yw 105°C version
– Anti Termit / Anti Rodent
– EN 50575 CPR compliant
