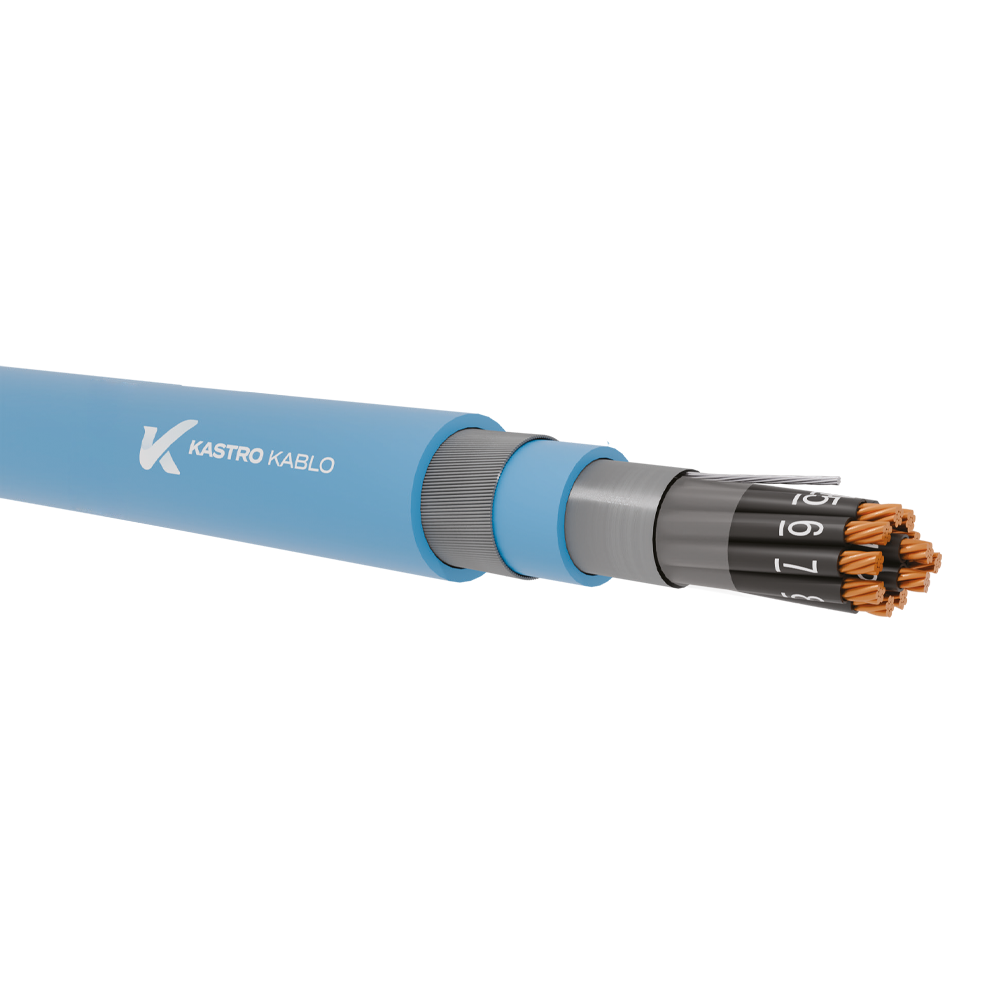

Description
Conductor:Electrolytic copper (EN/IEC 60228)
Insulation: PE (EN 50290-2-23)
Core Identification: White (with Black number) or Black (with White number)
Stranding: Cores stranded in layers
Wrapping: Polyester Tape
Screen: Aluminium/Polyester Tape + Tinned Copper Drain Wire
Inner Sheath: LSZH (EN 50290-2-27)
Armour: Round Galvanised Steel Wires
Outer Sheath: LSZH (EN 50290-2-27)
Outer Sheath Colour: RAL 9005 Black , RAL 5015 Blue (Other colours on request)
AVAILABLE OPTIONS ON REQUEST
– 500 V version
– 0,6/1 kV version
– XLPE Insulation
– Pair, Triple, Quadruple Twist
– PVC Outer Sheath
– UV-Resistant Sheath
– Anti-Termite/Anti
– Rodent Sheath
– EN 50575 CPR Compliance
