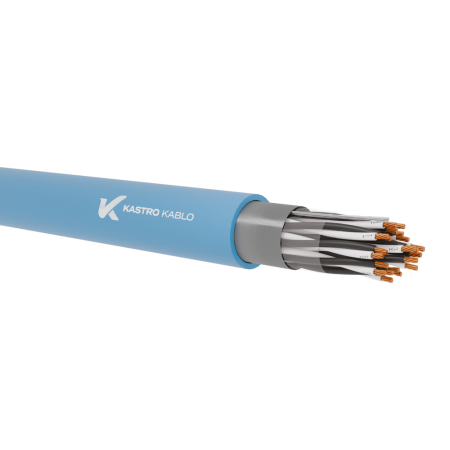

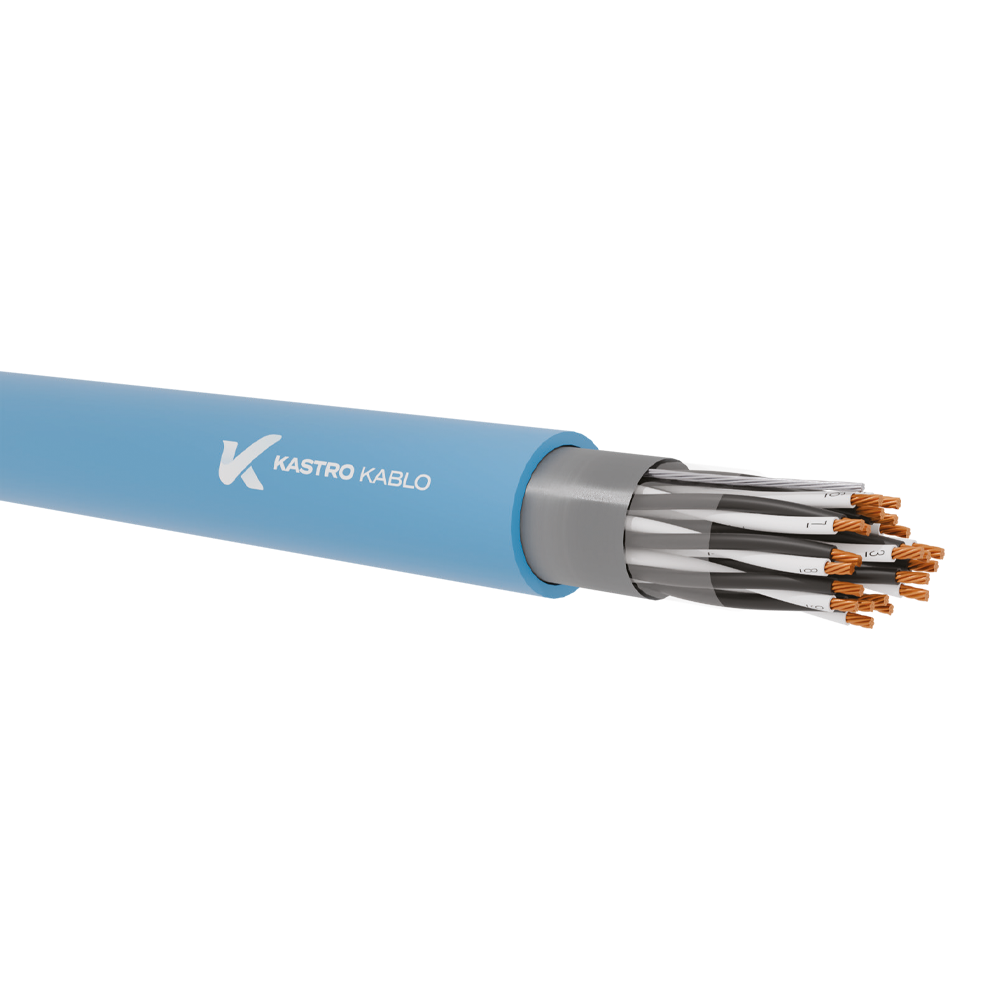

RE-2Y(St)H Cu-PE-OS-LSZH

INSTRUMENTATION CABLES

RE-2Y(St)H Cu/PE/OS/LSZH

EN 50288-7

These are instrumentation cables produced according to EN 50288-7 standard. It is designed for use in analog and digital control circuits, chemical industry, industrial signaling and process control circuits, petrochemical industrial display panels, electrical measuring devices and gas stations.

Category: INSTRUMENTATION CABLES

Description

CONSTRUCTION

Conductor: Electrolytic copper (EN/IEC 60228)
Insulation: PE (EN 50290-2-23)
Core Identification: White – Black (with number)
Stranding: Pairs stranded in layers
Wrapping: Polyester Tape
Screen: Aluminium/Polyester Tape + Tinned Copper Drain Wire
Outer Sheath: LSZH (EN 50290-2-27)
Outer Sheath Colour: RAL 9005 Black , RAL 5015 Blue (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– 500 V version
– 0,6/1 kV version
– XLPE Insulation
– Multicore, Multitriad, Multiquad
– PVC Outer Sheath
– EN 50575 CPR compliant
– LSZH Outer Sheath
– UV Resistance Outer Sheath
– Anti Termit / Anti Rodent
– EN 50575 CPR compliant
