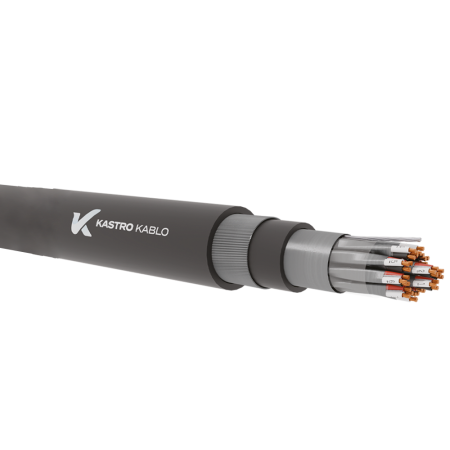

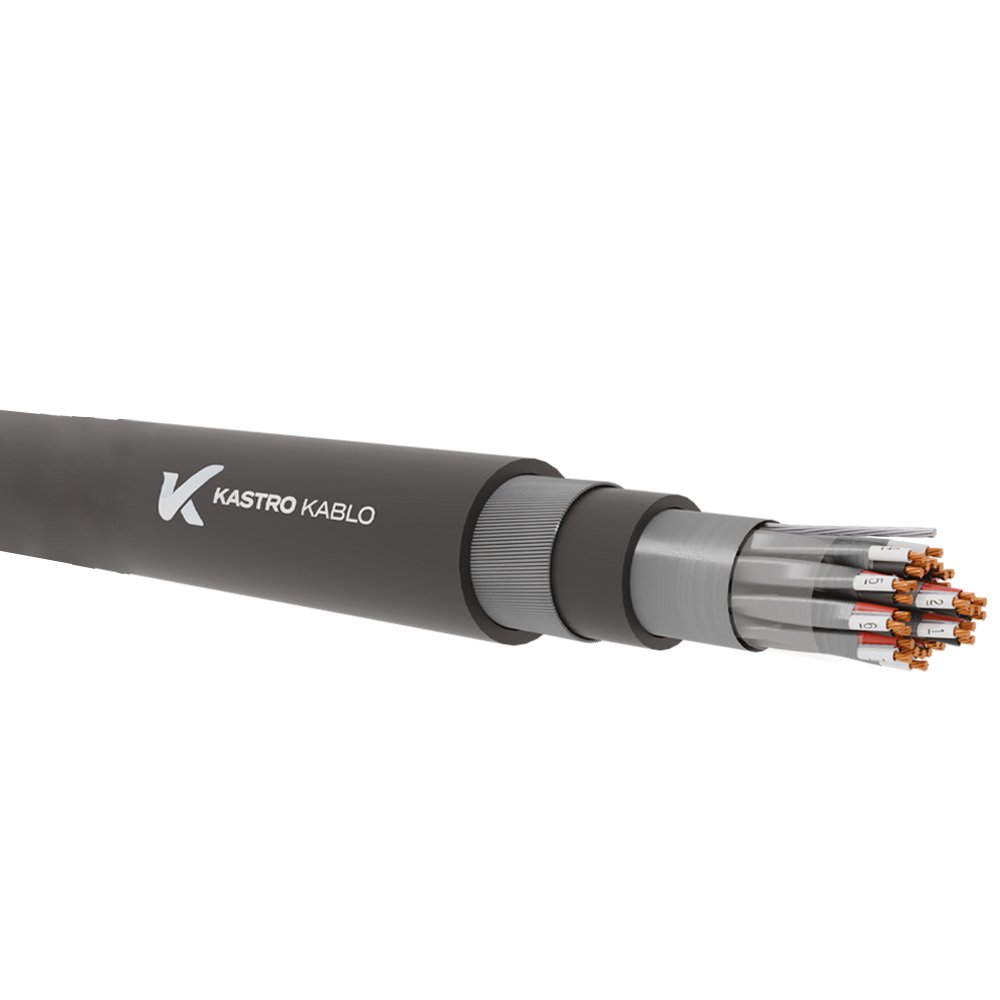

Description
Conductor: Electrolytic copper (EN/IEC 60228 )
Insulation: XLPE (EN 50290-2-29)
Core Identification: White – Black (with number)
Individual Wrapping: Polyester Tape
Individual Screen: Aluminium/Polyester Tape + Tinned Copper Drain Wire
Stranding: Shielded pairs stranded in layers
Overall Wrapping: Polyester Tape
Overall Screen: Aluminium/Polyester Tape + Tinned Copper Drain Wire
Inner Sheath: LSZH (EN 50290-2-27)
Armour: Round Galvanised Steel Wires
Outer Sheath: LSZH (EN 50290-2-27)
Outer Sheath Colour: RAL 9005 Black , RAL 5015 Blue (Other colours on request)
AVAILABLE OPTIONS ON REQUEST
– 500 V version
– 0,6/1 kV version
– PE Insulation
– Multitriad, Multiquad
– SWB / Q version
– STA version
– PVC Outer Sheath
– UV Resistance Outer Sheath
– Anti Termit / Anti Rodent
– EN 50575 CPR compliant
