PROFIBUS PA PVC

DATA CABLES

PROFIBUS PA PVC

These cables are designed for data transfer in industrial communication systems in accordance with the Profibus protocol.

Category: DATA CABLES

Description

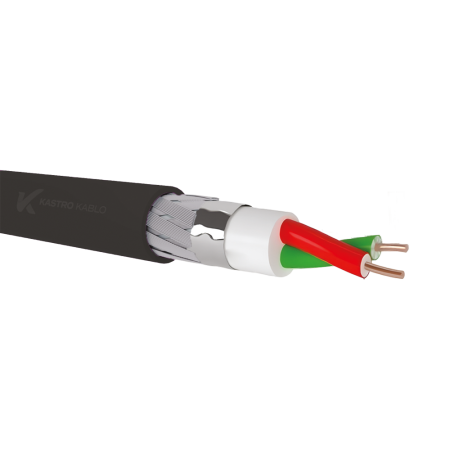

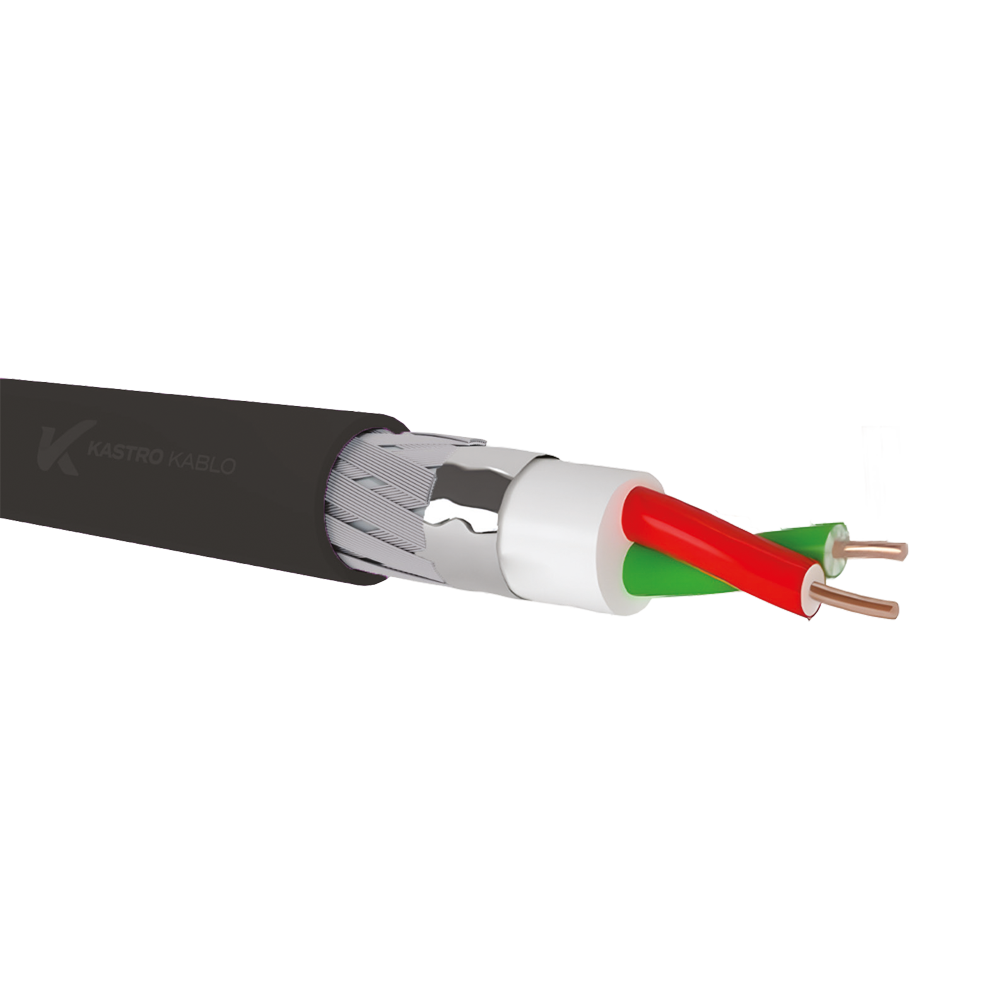

CONSTRUCTION

Conductor: Electrolytic solid copper conductor ( AWG 18 )
Insulation: Foam PE
Core Identification: Green-Red
Stranding: 2 cores 2 filler twisted together
Wrapping: Polyester Tape
Screen: Aluminium/Polyester Tape+Tinned Copper Braid
Outer Sheath: PVC (EN 50290-2-22)
Outer Sheath Colour: RAL 9005 Black , RAL 5015 Blue

AVAILABLE OPTIONS ON REQUEST

– LSZH Outer Sheath
