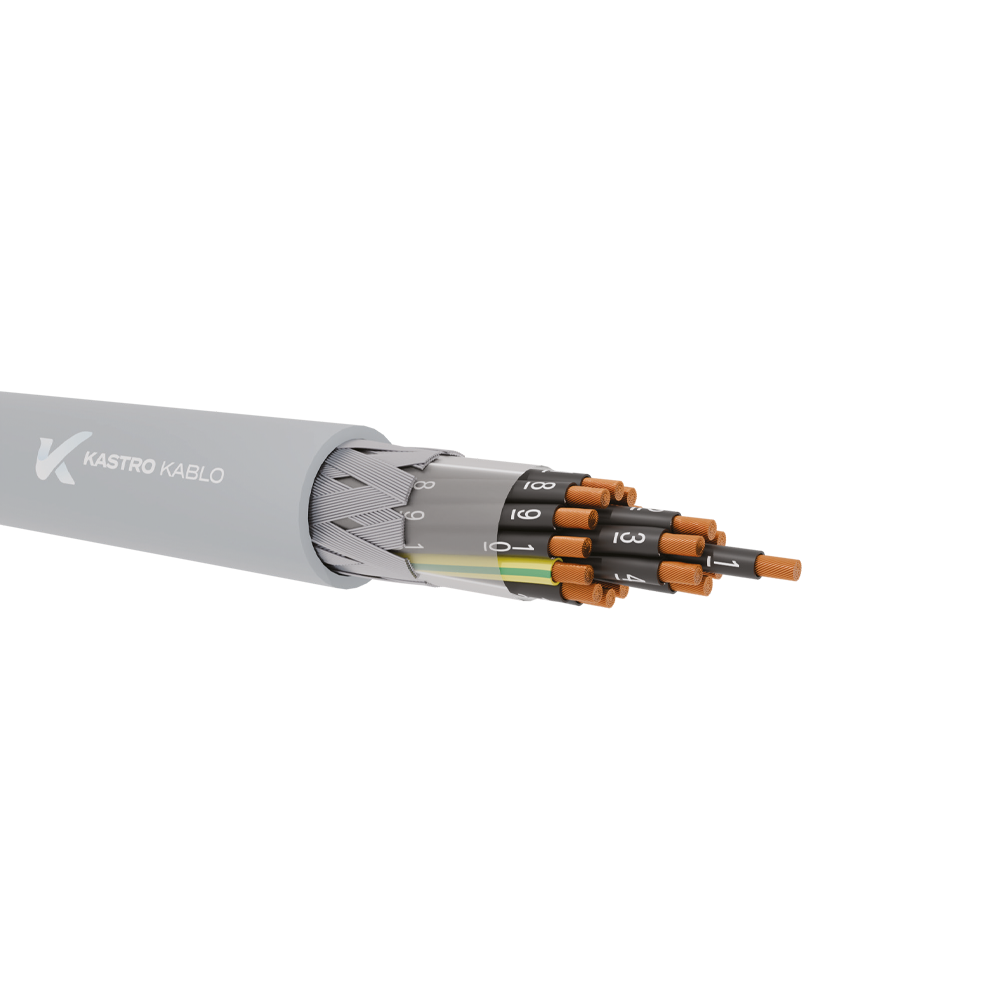

NLSCY-JZ / OZ

CONTROL CABLES

NLSCY-JZ / OZ

TSE K 374

These are control cables produced according to TSE K 374 standard. It is designed to be used for control, measurement and imaging purposes in electronic control systems, power plants, industrial electronics and engineering projects. Thanks to their flexible structure, they are suitable for narrow space applications. Screening protects the cable against the outer electrical effects. It is not suitable for use outdoors or buried directly under the ground.

Category: CONTROL CABLES

Description

CONSTRUCTION

Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 )
Insulation: PVC (TSE K 373)
Core Identification: -JZ : Green-Yellow earth core ,Black insulation (with white number)
Stranding: Cores stranded in layers
Wrapping: Polyester tape
Screen: Tinned Copper Braid (coverage: %60±3)
Outer Sheath: PVC (TS EN 50363-4-2)
Outer Sheath Colour: RAL 7001 Grey (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– OZ : Black insulation (with white number)

Datasheet
