LIY(St)CY-TP

SIGNAL AND CONTROL CABLES

LIY(St)CY-TP

TS 13755 , DIN VDE 0812

These are signal and control cables produced according to TS 13755 and VDE 0812 standards. It is designed to be used in industrial electronics, office machines, computer systems, indoor communication systems, audio and security systems. Screening protects the cable against the outer electrical effects. It is not suitable for use outdoors or buried directly underground. It is not suitable for use outdoors or buried directly under the ground.

Category: SIGNAL AND CONTROL CABLES

Description

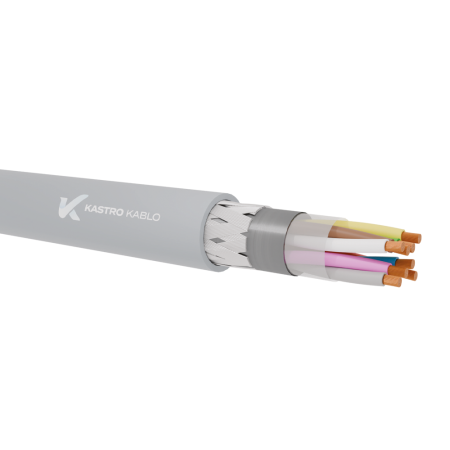

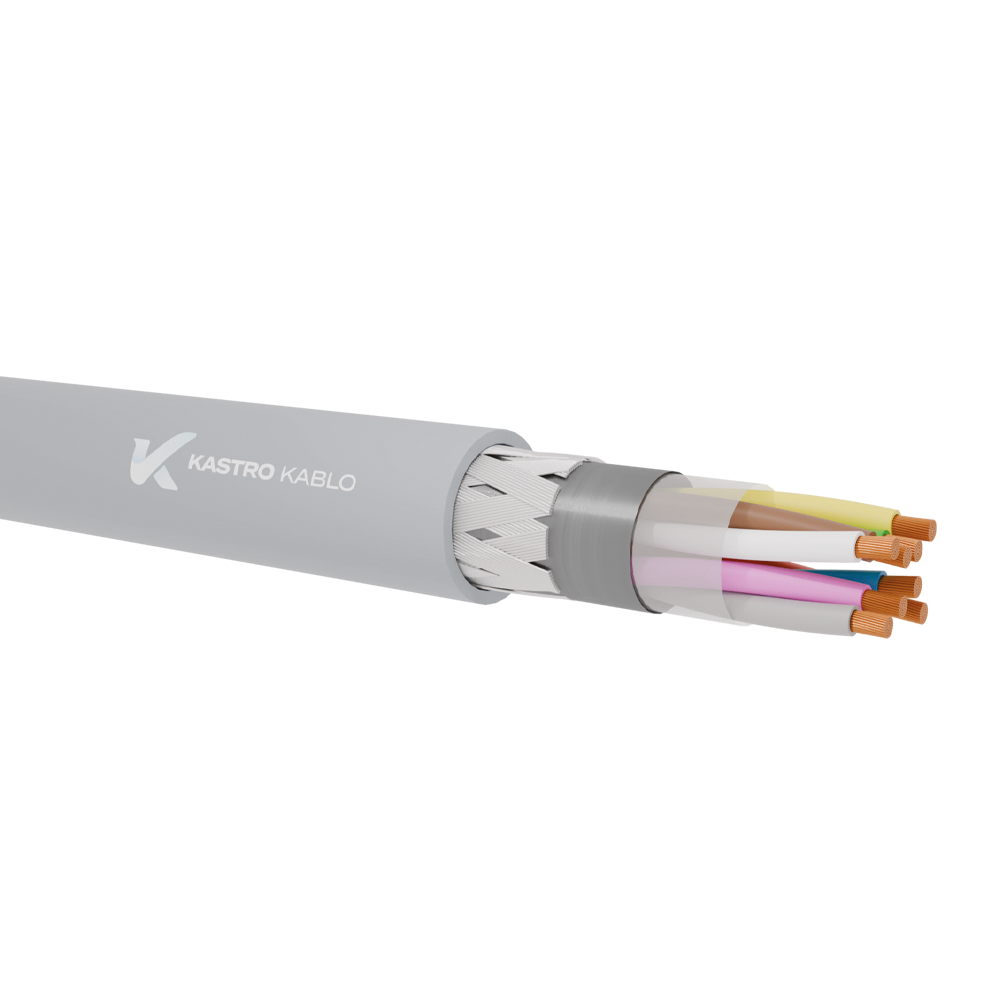

CONSTRUCTION

Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 , 0,22 -0,34mm² :Class2)
Insulation: PVC (EN 50290-2-21 , DIN VDE 0207-4)
Core Identification: DIN 47100
Stranding:Pairs stranded in layers
Wrapping: Polyester Tape
Screen: Aluminium/Polyester Tape + Tinned Copper Braid
Outer Sheath: PVC (EN 50290-2-22 , DIN VDE 0207-5)
Outer Sheath Colour: RAL 7001 Grey (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– HFFR Insulation , HFFR Outer Sheath
– Multicore
– EN 50575 CPR compliant
– OZ : Black insulation (with white number)
– JZ : Green-Yellow earth core ,Black insulation (with white number)
