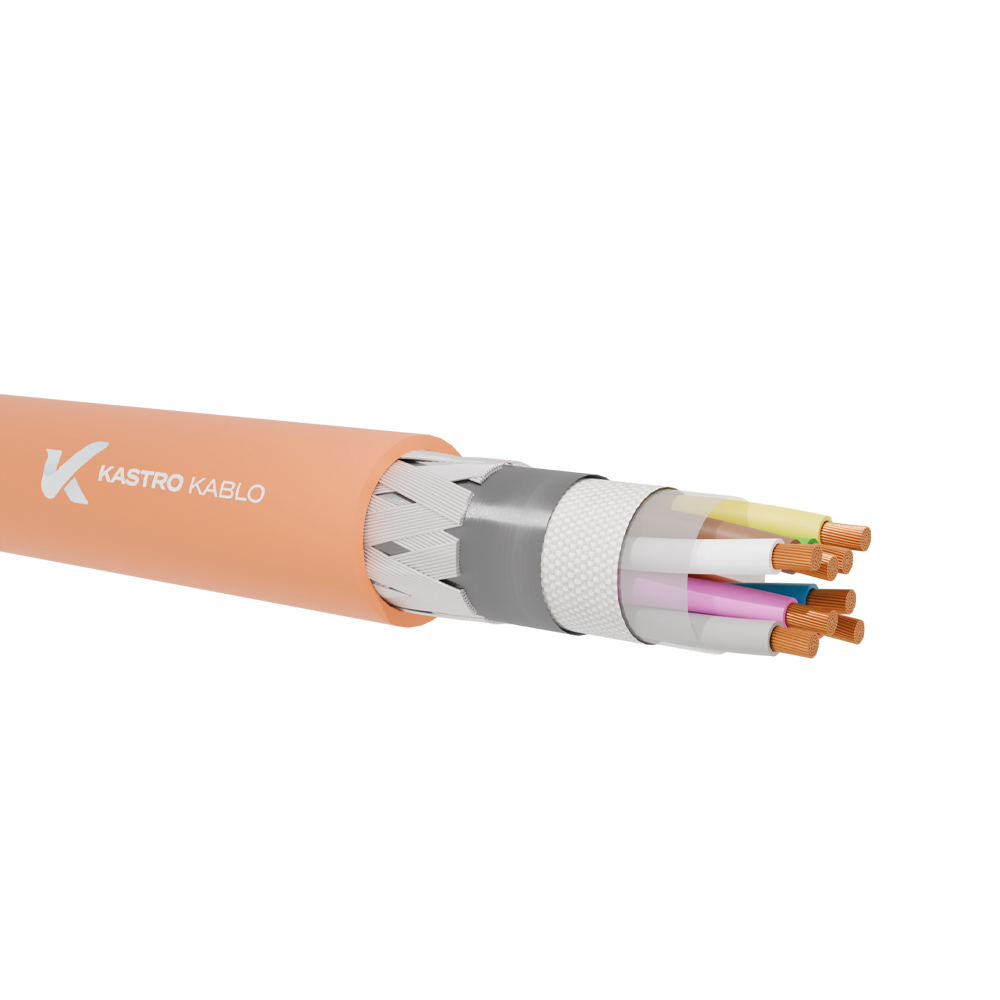

LIH(St)CH-TP FE180 PH120
FIRE RESISTANT CABLES

LIH(St)CH-TP FE180 PH120

TS 13734 , DIN VDE 0812

They are fire resistant signal and control cables produced according to TS 13734 and VDE 0812 standards. Smart or semi-smart home systems, hospitals, schools, shopping malls, airports, etc. where people are densely populated or where valuable items are located. It is designed to be used in fire alarm systems in places, in the control of devices that need to operate during a fire, and in systems that need to continue functioning for a certain period of time, such as emergency lighting systems. Since HFFR material is used in the product, it should be preferred in closed areas due to its features such as not releasing toxic gas when burned, not transmitting flame and low smoke density. Screening protects the cable against the outer electrical effects. It is not suitable for use outdoors or buried directly under the ground.

Category:

Description

CONSTRUCTION

Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5)
Insulation: EI2 Silicone (EN 50363-1)
Core Identification: DIN 47100 (up to 10 cores) ,Black insulation (with white number) (over 10 cores)
Stranding: Pairs stranded in layers
Wrapping: Polyester tape
Flame Barrier: Fiber glass tape
Screen: Aluminium/Polyester Tape /Tinned copper braid
Outer Sheath: HFFR (EN 50290-2-27 , DIN VDE 0207-24)
Outer Sheath Colour: RAL 2003 Orange (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– Multicore
– OZ : Black insulation (with white number)
