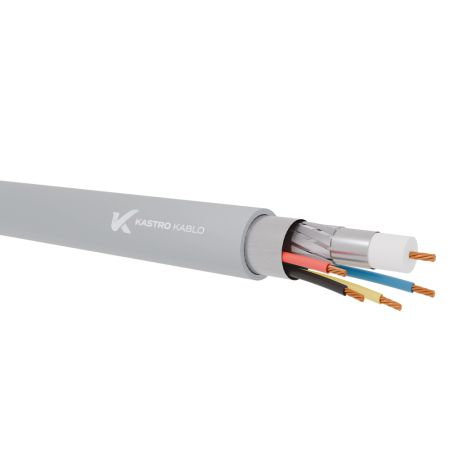

CCTV 4+1 HFFR

COAXIAL CABLES

CCTV 4+1 HFFR

TS 13778

These are camera cables produced according to TS 13778 standards. It is designed to provide
simultaneous transmission of image, power, audio and signals in indoor CCTV applications.

Category: COAXIAL CABLES

Description

CONSTRUCTION

COAXIAL

Conductor: Stranded annealed copper (EN/IEC 60228 Class2)
Insulation: PE (EN 50290-2-23)
Screen: Aluminium/Polyester Tape+ Aluminium Wire Braid

SIGNAL

Conductor: Stranded annealed copper (EN/IEC 60228 – 0,22 mm² Class2 , 0,50 mm² : Class5)
Insulation: HFFR (EN 50290-2-26)
Core Identification: TS 13778
Stranding: Coaxial and Signal cores stranded in layers
Screen: Aluminium/Polyester Tape+ Aluminium Wire Braid
Outer Sheath:HFFR (EN 50290-2-27
Outer Sheath Colour: RAL 7001 Grey (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– PVC Insulation, PVC Outer Sheath
