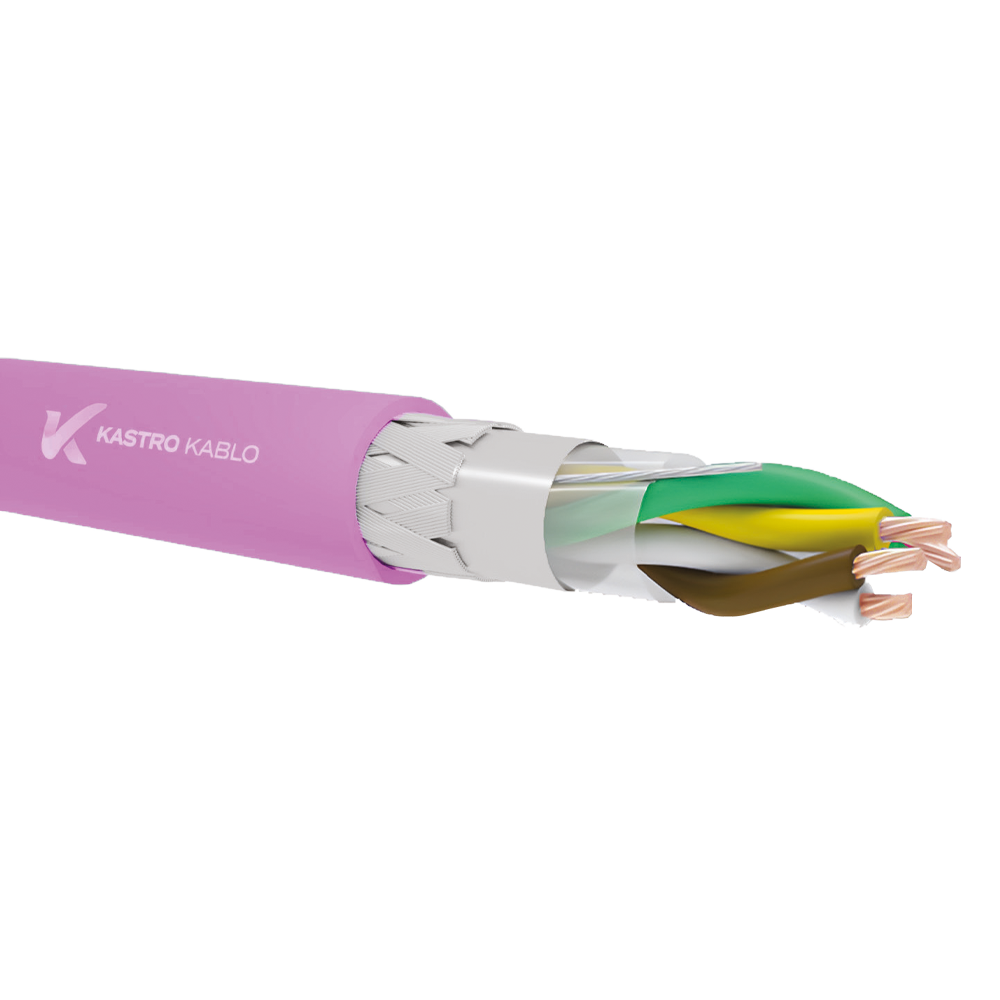

CAN-BUS PVC

These are designed for use two-pair bus line for cabling CAN bus systems, computers and office machines , industrial electronics and in EMC-sensitive environments.

Category: DATA CABLES

Description

CONSTRUCTION

Conductor: Electrolytic copper conductor( AWG 24 / AWG 22 )
Insulation: Foam PE
Core Identification: DIN 47100
Stranding: Pairs stranded in layers
Wrapping: Polyester Tape
Screen: Aluminium/Polyester Tape + Tinned Copper Braid
Outer Sheath: PVC (EN 50290-2-22)
Outer Sheath Colour: RAL 4001 Purple (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– LSZH Outer Sheath

Datasheet
