13YSLC11Y-JZ / OZ

CONTROL CABLES

13YSLC11Y-JZ / OZ

TSE K 373 / TS EN 50525-2-51

These are TPE-E insulated and PUR sheathed control cables manufactured in accordance with TSE K 373 / TS EN 50525-2-51 standards. They are designed for use in production lines, the machinery industry, robotic systems, and areas with free movement and low mechanical stress. Thanks to their flexible structure, they are suitable for applications in confined spaces. Screening protects the cable against the outer electrical effects. Suitable for fixed outdoor installations, but not designed for direct burial underground.

Category: CONTROL CABLES

Description

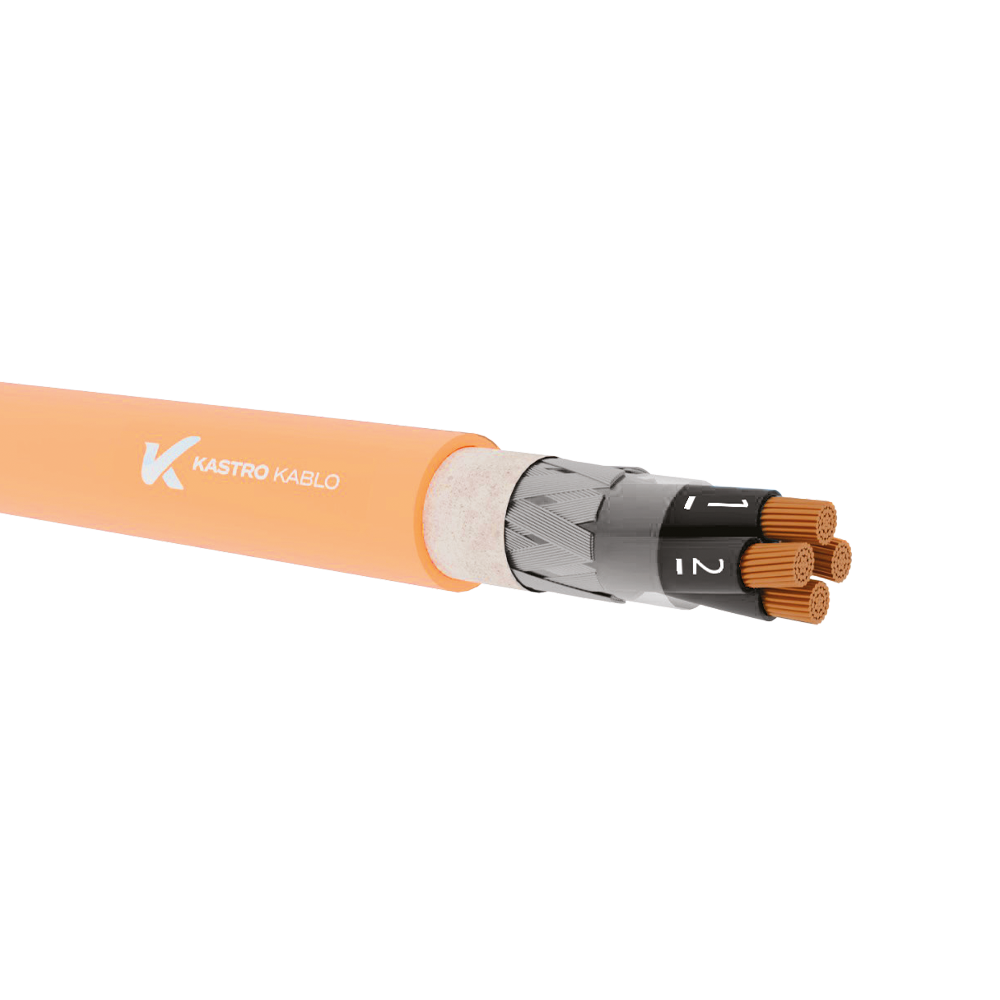

CONSTRUCTION

Conductor: Stranded annealed copper (EN/IEC 60228, DIN EN 60228 VDE 0295- Class5 )
Insulation: Special Compound, TPE-E
Core Identification: -JZ : Green-Yellow earth core ,Black insulation (with white number)
Stranding: Cores stranded in layers
Wrapping: Polyester Tape
Screen: Tinned Copper Braid
Wrapping: Non-Woven Bant
Outer Sheath: PUR ( TMPU) ( TS EN 50363-10-2 )
Outer Sheath Colour: RAL 2003 Orange (Other colours on request)

AVAILABLE OPTIONS ON REQUEST

– JB : HD 308 S2
– OZ : Black insulation (with white number)
